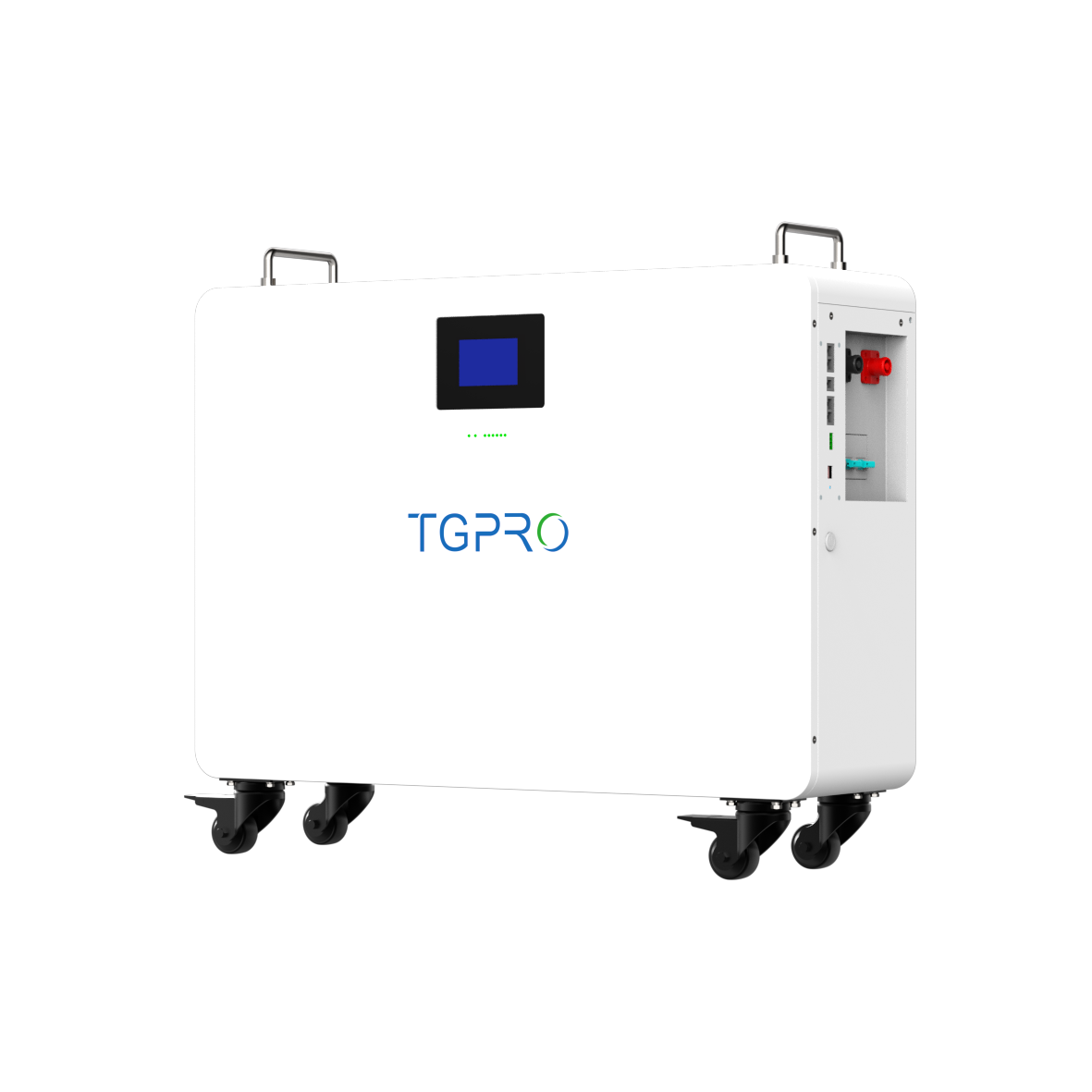

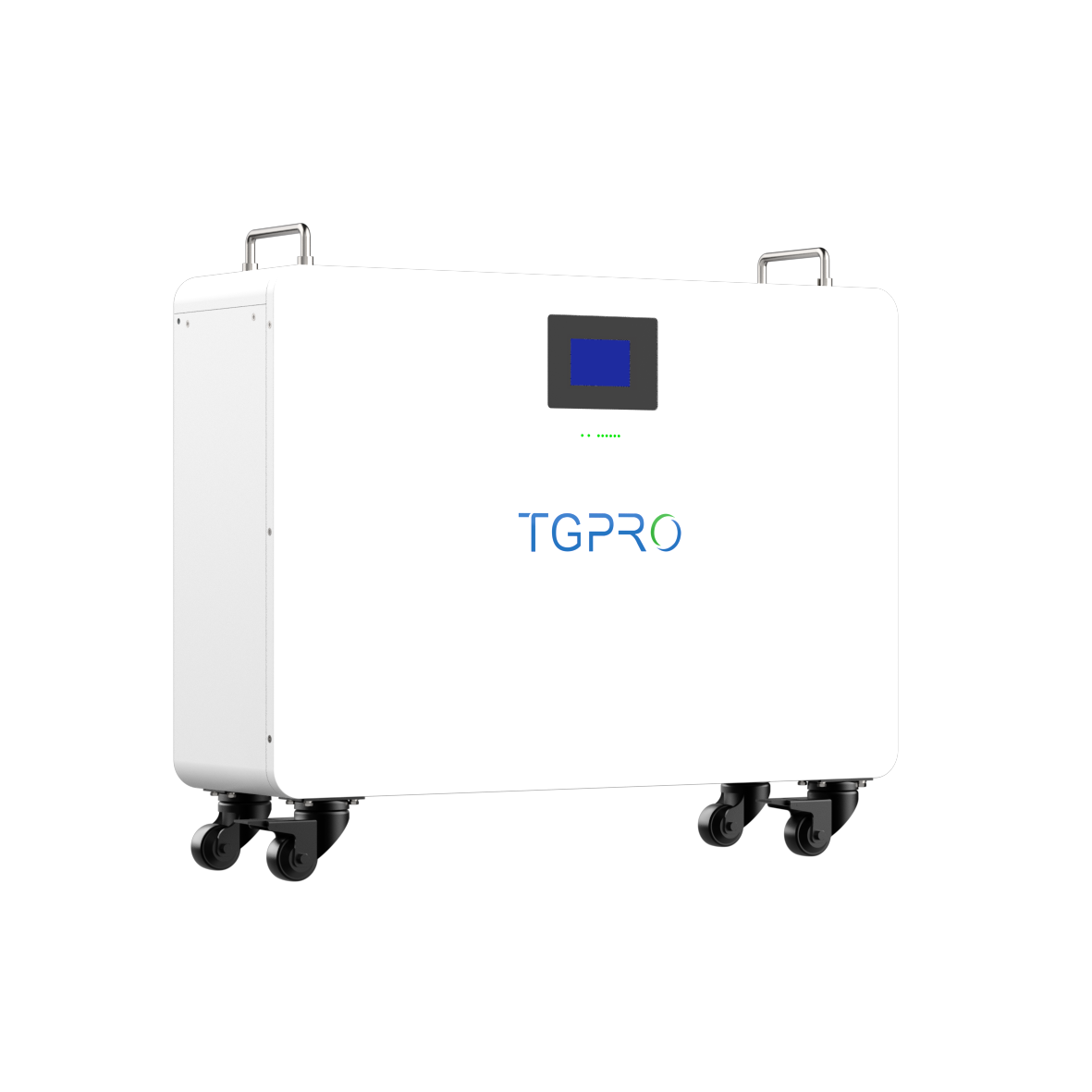

TG-TH series
Mobile low-voltage battery packs
1780993522544819
1780993530568887
1780993532147759
Product advantages
1762343074366913
Rapid deployment
The wheeled mobile design eliminates the limitations of fixed installation, meeting temporary power needs such as outdoor activities, construction sites, and exhibitions
1762343074682969
Intelligent integration and management
Built-in intelligent BMS, featuring precise battery status monitoring, balancing management, fault protection, and communication functions (such as CAN/RS485), seamlessly integrating with mainstream inverters and energy management systems for intelligent charging and discharging
1762341106295862
Extra-large capacity and long-lasting power supply
With a 16kWh ultra-large capacity, it supports long-term operation of high-power equipment (such as power tools and small units) or provides all-day backup power for small commercial activities
Technical specifications
1780993522544819
1780993530568887
1780993532147759
ModelTG-51205-MTG-51314-M
Rated Voltage (Vdc)51.2
Cell Configuration16.0
Rated Capacity (Ah)205314
Rated Energy (kWh)10.516.1
Cycle Life25±2℃,0.5C/0.5C, EOL70%≥6000
Maximum Charge Current (A)200A150A
Maximum Discharge Current (A)200A
Discharge Cut-off Voltage (VDC)43.2
Charge Cut-off Voltage (VDC)57.6
Charging Temperature0℃~50℃@60±25% relative humidity
Discharging Temperature-20℃~50℃@60±25% relative humidity
Storage Temperature-20℃~50℃@60±25% relative humidity
IP RatingIP20
Cathode MaterialLithium Iron Phosphate
Enclosure MaterialMetal
Enclosure StyleWheel type
Product Dimensions Height*Length*Width (mm)622*520*227766*614*221
Packaging Dimensions Height*Length*Width (mm)722*695*328866*695*328
Net Weight (kg)92122
Gross Weight (kg)112145
ProtocolCAN/RS485/RS232
MonitoringBluetooth/WLAN options
CertificationUN38.3, MSDSUN38.3,MSDS
To learn more about energy storage solutions, please contact us!
