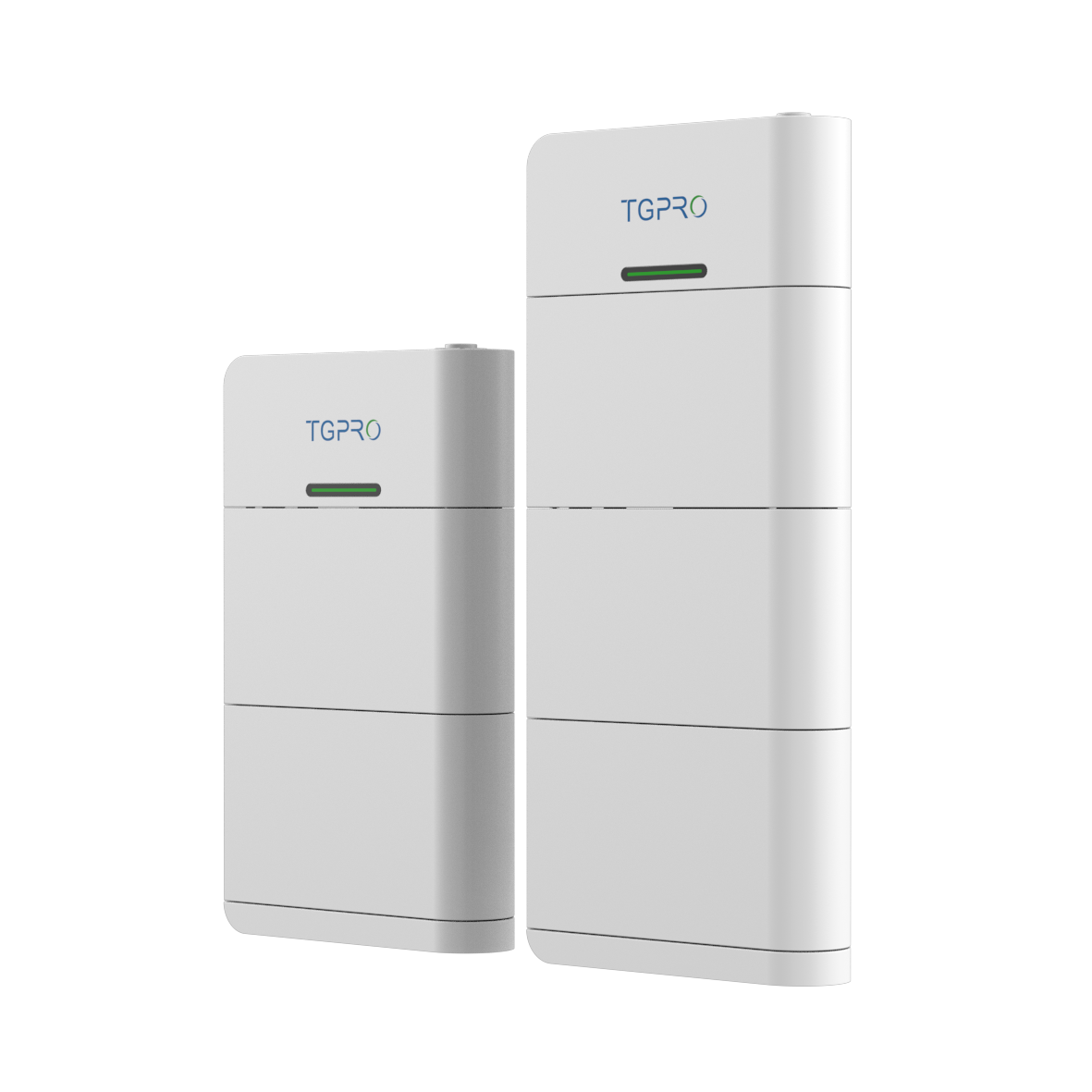

TG-SS-5HVS series
High-voltage stacked battery packs
1780995537408995
1780995549712572
1780995551382572
Product advantages
1762343074682969
Strong scalability
You can freely choose between 9.6~19.2kWh of power
1762341106295862
Stacked design
Wireless connectivity is easy to install
1762343074800005
IP65 design
Suitable for outdoor use
1762343074366913
Supports diesel and electricity connection
Meeting diverse energy needs
Technical specifications
1780995537408995
1780995549712572
1780995551382572
MODELTG-SS-HV2TG-SS-HV3
Rate voltage(Vdc)192288
Cell combination(S1P)3051P*2S3051P*3S
Energy storage(KWH)9.614.4
Discharge cut-off voltage(VDC)162243
Charge cut-off voltage(VDC)216324
Product dimension L*W*H(mm)680*185*1035680*185*1425
Package dimension L*W*H(mm)780*295*450*3780*295*450*4
Net weight(kg)14+49*214+49*3
Gross weight(kg)21+53*221+53*3
MODELTG-SS-HV4TG-SS-HV5
Rate voltage(Vdc)384480
Cell combination(S1P)3051P*4S3051P*5S
Energy storage(KWH)19.224
Discharge cut-off voltage(VDC)324405
Charge cut-off voltage(VDC)432540
Product dimension L*W*H(mm)680*185*1815680*185*2205
Package dimension L*W*H(mm)780*295*450*5780*295*450*6
Net weight(kg)14+49*414+49*5
Gross weight(kg)21+53*421+53*5
Rate capacity(AH)50
Cycle life25±2℃,0.5C/0.5C, EOL70%≥6000
Max. charge current(A)50
Max.discharge current(A)50
Charge temperature0°℃~50℃@60±25% Relative Humidity
Discharge temperature-20℃~50℃@60±25% Relative Humidity
Storage temperature-40℃~50℃@60±25% Relative Humidity
IP classIP65
Material systemLiFePO4
Case materialMetal
Case typeStand Stack
Protocol(Optional)CAN/RS485
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDS, CE-EMC, IEC62619,63056
To learn more about energy storage solutions, please contact us!
